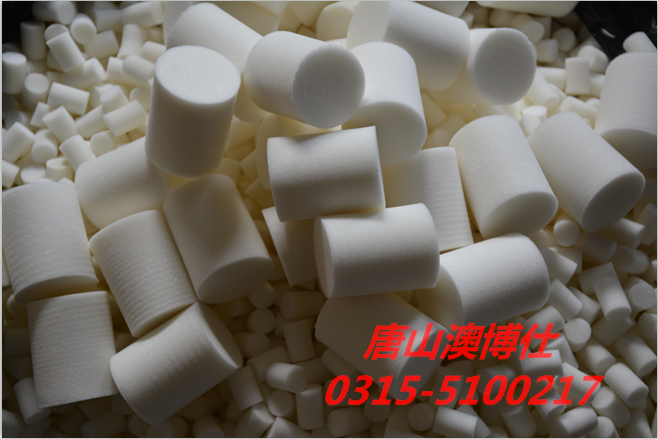

海绵射弹外形尺寸表，海绵射弹批发，海绵射弹密度任你选。13903378238
作者： 发布于：2018/8/9 11:09:43 点击量：
| 海绵射弹外形尺寸表(对外） | |||
| 海绵射弹直径 | 海绵射弹高度 | 最小高度 | 最大高度 |
| 3mm | 8mm | 7mm | 10mm |
| 4mm | 8mm | 7mm | 10mm |
| 5mm | 10mm | 9mm | 12mm |
| 6mm | 12mm | 11mm | 15mm |
| 7mm | 15mm | 13mm | 17mm |
| 8mm | 15mm | 13mm | 17mm |
| 10mm | 15mm | 15mm | 17mm |
| 11mm | 16mm | 16mm | 20mm |
| 12mm | 18-20mm | 17mm | 20mm |
| 14mm | 20mm | 19mm | 20mm |
| 16mm | 23mm | 21mm | 25mm |
| 18mm | 25mm | 23mm | 25mm |
| 20mm | 25mm | 25mm | 27mm |
| 22mm | 30mm | 27mm | 31mm |
| 24mm | 30mm | 29mm | 32mm |
| 26mm | 33mm | 32mm | 35mm |
| 28mm | 35mm | 33mm | 35mm |
| 30mm | 36mm | 35mm | 38mm |
| 33mm | 40mm | 38mm | 42mm |
| 35mm | 45mm | 41mm | 45mm |
| 40mm | 50mm | 47mm | 52mm |
| 45mm | 55mm | 52mm | 56mm |
| 50mm | 60mm | 57mm | 62mm |
| 55mm | 65mm | 63mm | 66mm |
| 60mm | 70mm | 67mm | 72mm |
| 65mm | 75mm | 73mm | 77mm |
| 70mm | 80mm | 78mm | 82mm |
| 75mm | 85mm | 83mm | 87mm |
| 80mm | 90mm | 87mm | 92mm |
| 85mm | 95mm | 93mm | 97mm |
| 90mm | 100mm | 98mm | 102mm |
| 95mm | 105mm | 103mm | 107mm |
| 100mm | 110mm | 108mm | 114mm |
| 105mm | 115mm | 114mm | 120mm |
| 110mm | 120mm | 118mm | 125mm |
| 115mm | 125mm | 124mm | 130mm |
| 120mm | 135mm | 130mm | 140mm |
